NEW FRUIT BONUS 96 SE
SOFTWARE UPDATE CHIP SET
THE LATEST VERSIONS FOR AMCOE FB`96/NC96 BOARDS
***Currents Versions Fits On All Game Board Types:***
(also you can use it as a conversion kit for moves from New Cherry`96 into FB`96)
(this can be found etched on the satellite board)
BOARD TYPE A
BOARD TYPE B
BOARD TYPE C1
BOARD TYPE D
BOARD TYPE DK
BOARD TYPE G

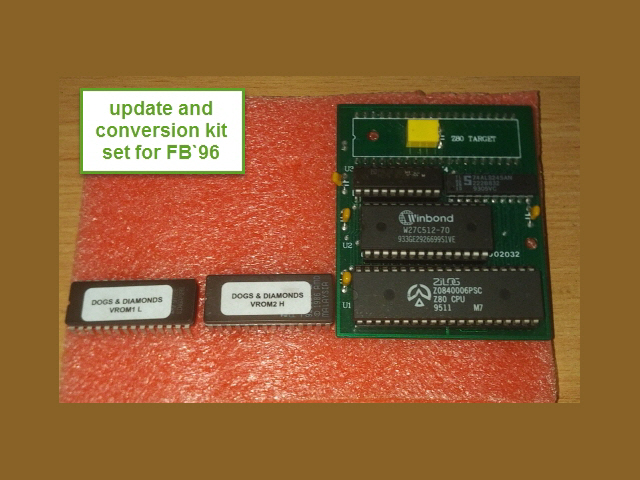

Easy To Install:
1. Test The Fruit Bonus 96 Board, Make Sure It Works.
2. Unplug The Old SUB-PCB (DAUGHTER BOARD).
3. Plug-In The New SUB-PCB (DAUGHTER BOARD).
4. Remove the 2 EPROMs chips from VROM1 And VROM2.
5. Insert the 2 new EPROMs chips on VROM1 And VROM2.
Beware Of The Direction
Of The New Eprom Chip Notch (Divet In New Eprom Must Face The Same Direction As The Old Eprom Your Replacing)
The Actual Product You Receive May Vary Slightly To The Photo Attached.
There Will Be Identifying Stickers Placed On Eproms For Each Kit.
With This, Each Product Will Work As Described.
You Can Select One From Below Variations Of Versions
|
Version 3.63
All Fruits Bonus and 888 Bonus values:
Range of Base: 200, 300, 400, 500, 1000, 1500, 2000, 3000.
Range of Max: 1000, 1500, 2000, 3000, 4000, 5000, 6000, and 8000.
GAME PERCENTAGE / Level Of Difficulty:
55% Level 8
60% Level 7
65% Level 6
70% Level 5
75% Level 4
80% Level 3
85% Level 2
90% Level 1
All Fruits Bonus X3
|

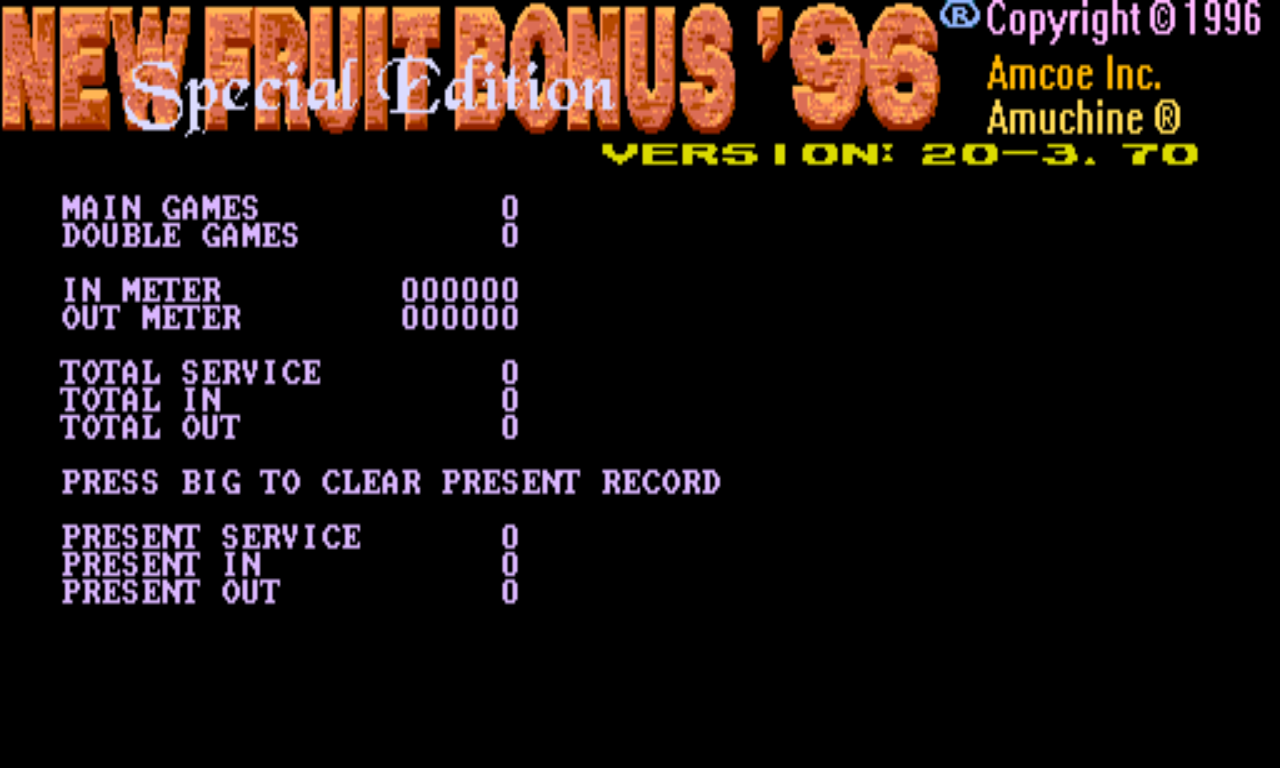

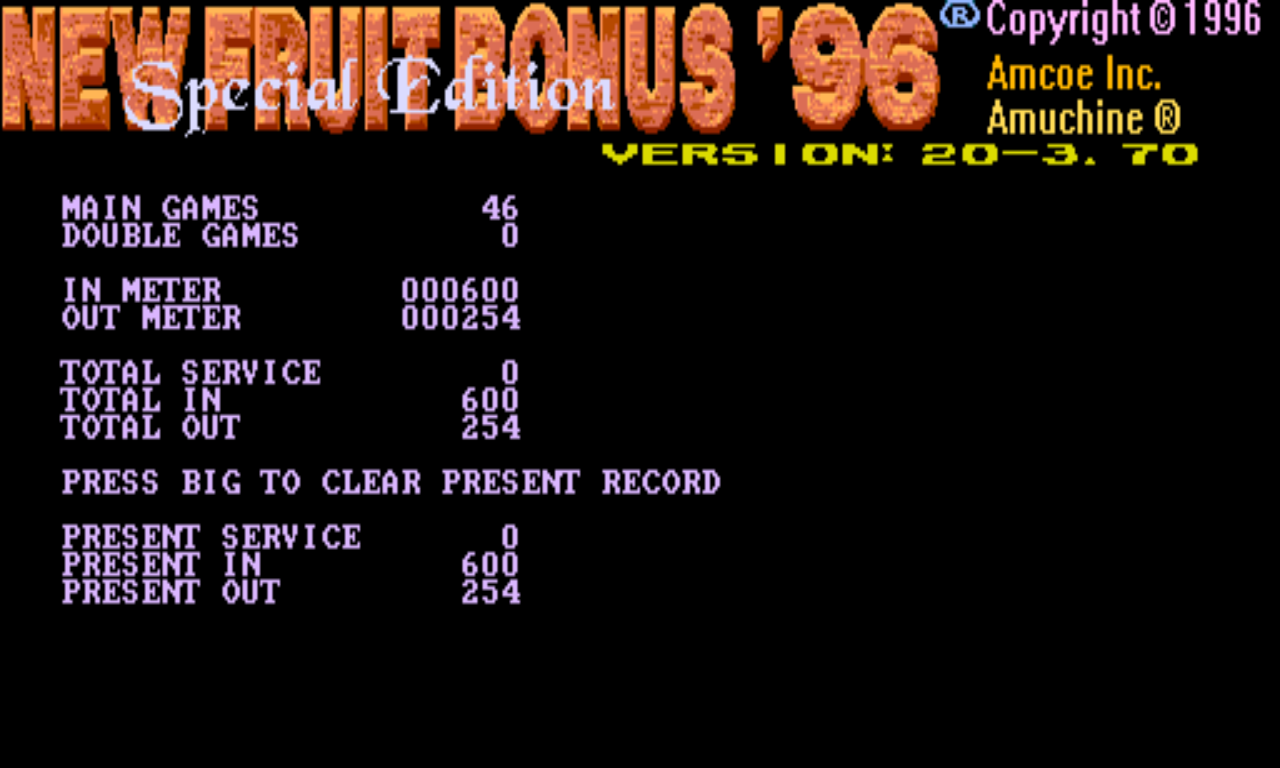

Version 3.70
All Fruits Bonus and 888 Bonus values:
Range of Base: 200, 300, 400, 500, 1000, 1500, 2000, 3000.
Range of Max: 1000, 1500, 2000, 3000, 4000, 5000, 6000, and 8000.
GAME PERCENTAGE / Level Of Difficulty:
55% Level 8
60% Level 7
65% Level 6
70% Level 5
75% Level 4
80% Level 3
85% Level 2
90% Level 1
All Fruits Bonus X1 / Fast take win score/credits
|
|
Version 3.71 (Good Hold)
All Fruits Bonus and 888 Bonus values:
Range of Base: 200, 300, 400, 500, 1000, 1500, 2000, and 3000.
Range of Max: 1000, 1500, 2000, 3000, 4000, 5000, 6000, and 8000.
GAME PERCENTAGE / Level Of Difficulty:
30% Level 13
40% Level 11
45% Level 10
50% Level 9
55% Level 8
60% Level 7
65% Level 6
70% Level 5
All Fruits Bonus X1 / Fast take win score/credits
|
Version 3.75 (Good Hold)
All Fruits Bonus and 888 Bonus values:
Range of Base: 500, 1000, 2000, 3000, 4000, 6000, 8000 and 9000.
Range of Max: 500, 1000, 2000, 3000, 4000, 6000, 8000 and 9000.
GAME PERCENTAGE / Level Of Difficulty:
30% Level 13
40% Level 11
45% Level 10
50% Level 9
55% Level 8
60% Level 7
65% Level 6
70% Level 5
All Fruits Bonus X1 / Fast take win score/credits
|
|
Version 3.76
All Fruits Bonus and 888 Bonus values:
Range of Base: 500, 1000, 2000, 3000, 4000, 6000, 8000 and 9000.
Range of Max: 500, 1000, 2000, 3000, 4000, 6000, 8000 and 9000.
GAME PERCENTAGE / Level Of Difficulty:
55% Level 8
60% Level 7
65% Level 6
70% Level 5
75% Level 4
80% Level 3
85% Level 2
90% Level 1
All Fruits Bonus X1 / Fast take win score/credits
|
Version 3.80
All Fruits Bonus and 888 Bonus values:
Range of Base: 10000, 12000, 15000, 17000, 20000, 23000, 25000, and 30000
Range of Max: 10000, 12000, 15000, 17000, 20000, 23000, 25000, and 30000
GAME PERCENTAGE / Level Of Difficulty:
55% Level 8
60% Level 7
65% Level 6
70% Level 5
75% Level 4
80% Level 3
85% Level 2
90% Level 1
All Fruits Bonus X1 / Fast take win score/credits
|
|
Version 3.81 (Good Hold)
All Fruits Bonus and 888 Bonus values:
Range of Base: 10000, 12000, 15000, 17000, 20000, 23000, 25000, and 30000
Range of Max: 10000, 12000, 15000, 17000, 20000, 23000, 25000, and 30000
GAME PERCENTAGE / Level Of Difficulty:
30% Level 13
40% Level 11
45% Level 10
50% Level 9
55% Level 8
60% Level 7
65% Level 6
70% Level 5
All Fruits Bonus X1 / Fast take win score/credits
|

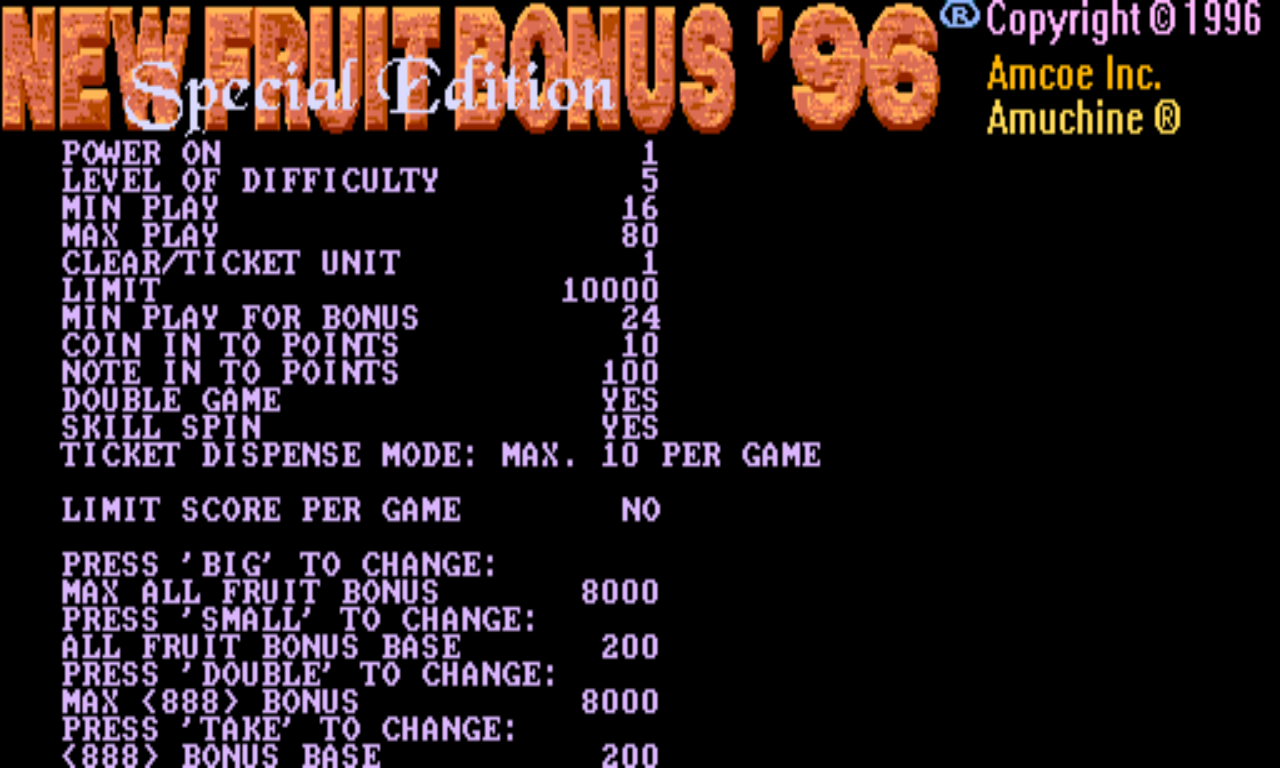

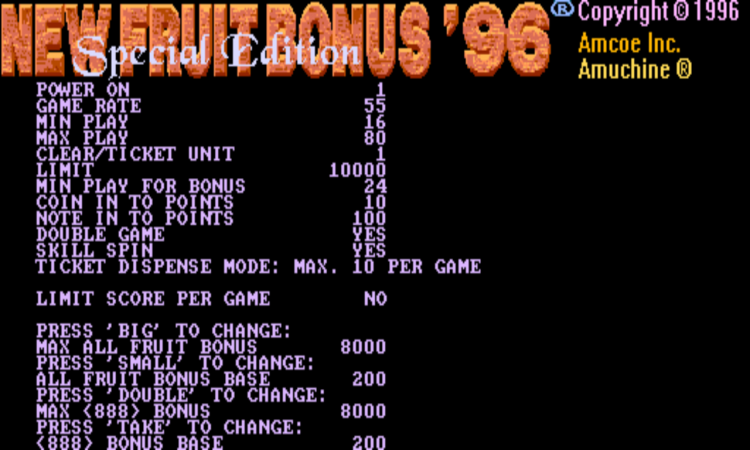

PLEASE NOTE:
Max Of All Fruit Bonus, Base Of All Fruit Bonus, Max Of 888 Bonus, And Base Of 888 Bonus
Can Be Adjusted Individually In Confirm Screen, Instructions Are Shown On Confirm Screen.
If Present Bonus Point Is Lower Than Newly Changed Base,
Bonus Point Will Be Changed To New Base Immediately.
If Present Bonus Point Is Higher Than Newly Changed Base,
New Base Will Be Used Only After Bonus Hit.
If Present Bonus Point Is Higher Than Newly Changed Max Bonus
Point Will Be Changed To New Max Immediately.
Caution : Always Set Max Bonus Equal Or Higher Than Base Bonus.
|
Manual including
Quality Control:
Run Tested 1-2 Days Before Shipping To Ensure Stability
Ships Worldwide With A Tracking Number
|
